GLS LSX1200-13S

GLS LSX1200-13S

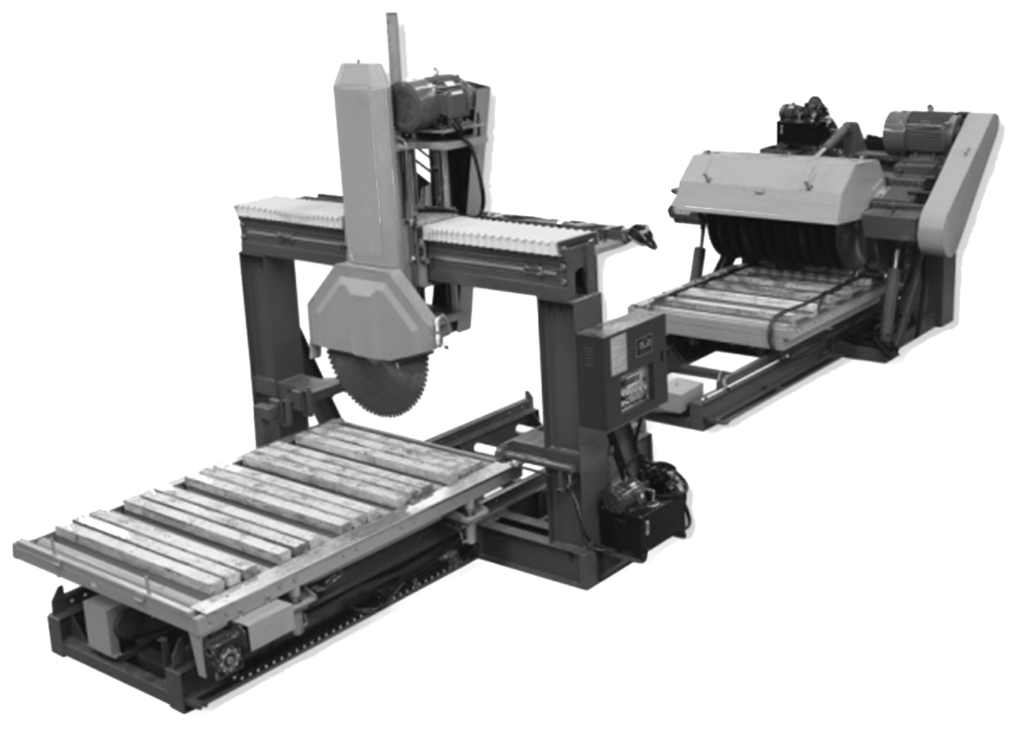

The GLS LSX1200-13S intelligent production line is designed for high-efficiency manufacturing of stone kerbstones. This fully automated line integrates cutting, chamfering, rounding, and flaming operations to deliver high-quality finished kerbstones with exceptional precision and productivity. Customizable configurations allow adaptation to specific production requirements and urban infrastructure projects.

Key Features
• Fully Automated Production Line: Integrated cutting, chamfering, rounding, and flaming processes ensure consistent and efficient kerbstone production.
• High Production Capacity: Optimized workflow enables large-scale output with stable quality and reduced manual intervention.
• Intelligent & Customizable System: Smart control architecture allows customization of line length and processing modules to match production needs.

Superior Stability:
Reinforced structure providing high
stability during operation.

High Precision:
Suitable for precise and complex
engravings with high detail fidelity.

Easy Maintenance:
Simplified maintenance system
for increased durability.

Prix

On request

We ship worldwide

Technical datas

Specification GLS LSX1200-13S Unit
Maximum blade diameter Ø1200 × 130 to Ø400 × 5 mm
Maximum feeding speed 50 m/min
Maximum cutting height 350 mm
Total installed power 128 kW
Weight 225 tons
Overall dimensions (L×W×H) 24000 × 8000 × 4800 mm

France - USA - China - Brazil

Request a quote
