GLS LDX Series

GLS LDX Series

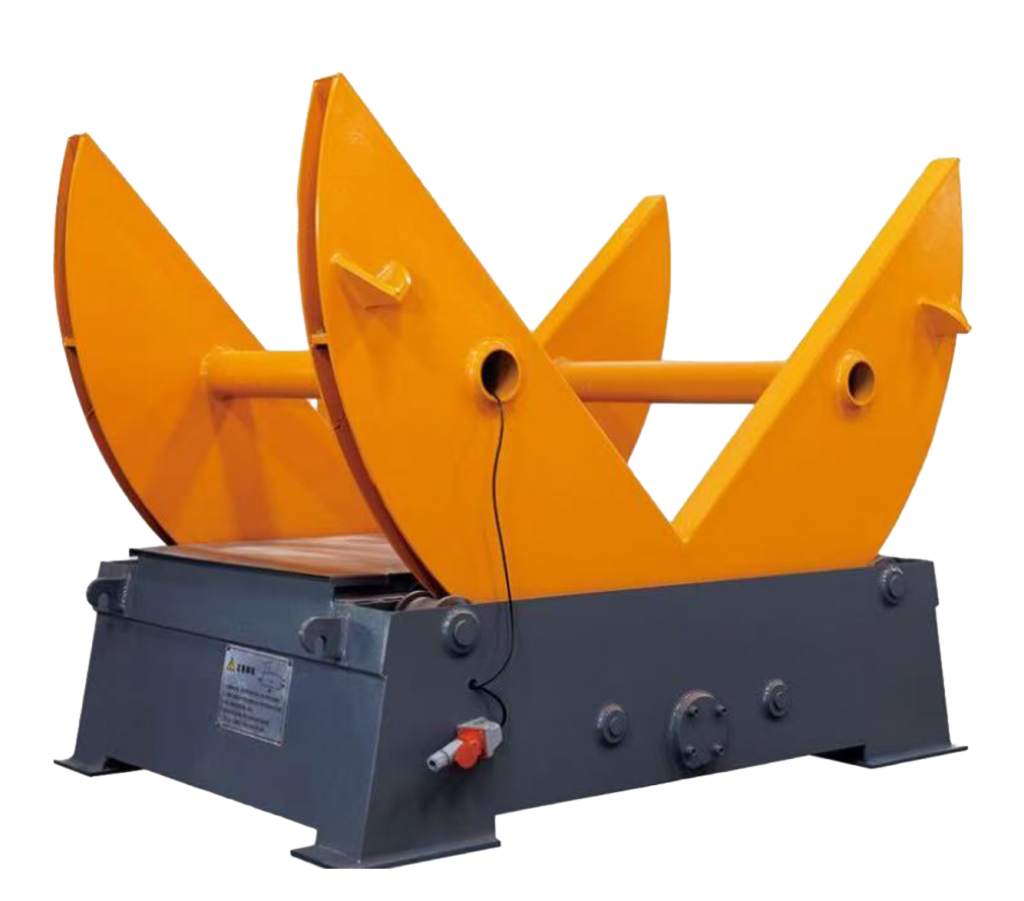

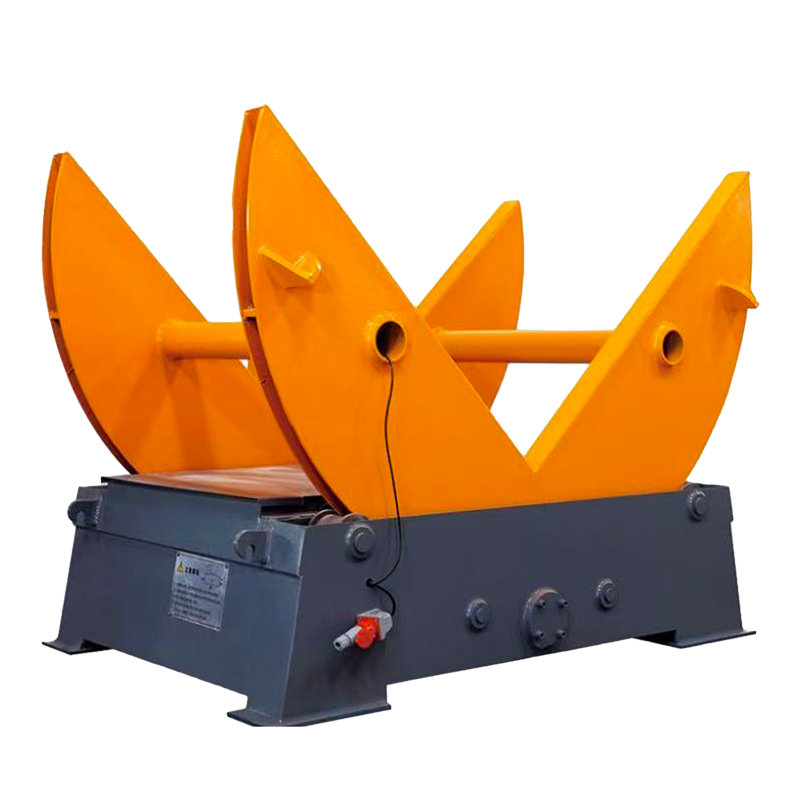

The GLS LDX series block turner is designed for safe and efficient rotation of stone blocks during handling and processing operations. Engineered for stone yards and industrial workshops, it allows precise block positioning from 0° to 90°, improving workflow efficiency while reducing manual handling risks.

Key Features
• Heavy-Duty Block Handling: Designed to safely rotate stone blocks with capacities up to 65 tons, depending on the model.
• Precise Rotation Control: Controlled rotation from 0° to 90° ensures accurate block positioning during processing.
• Robust Industrial Construction: Heavy-duty steel structure ensures long-term reliability in demanding stone handling environments.

Superior Stability:
Reinforced structure providing high
stability during operation.

High Precision:
Suitable for precise and complex
engravings with high detail fidelity.

Easy Maintenance:
Simplified maintenance system
for increased durability.

Prix

On request

Request a quote

We ship worldwide

Technical datas

Specification LDX-6T LDX-10T LDX-35T LDX-45T LDX-65T Unit
Maximum block weight 6000 10000 35000 45000 65000 kg
Maximum block length 2000 2400 3000 3500 3500 mm
Maximum block width 1200 1500 1800 2000 2000 mm
Maximum block height 1200 1600 2000 2000 2000 mm
Rotation angle 0–90 0–90 0–90 0–90 0–90 °
Main motor power 11 15 30 45 75 kW
Overall dimensions (L×W×H) 1931×1410×1830 2390×1700×1870 2900×1750×2123 2975×1800×2300 3050×1850×2300 mm
Total weight 1100 1500 3200 3500 3800 kg
